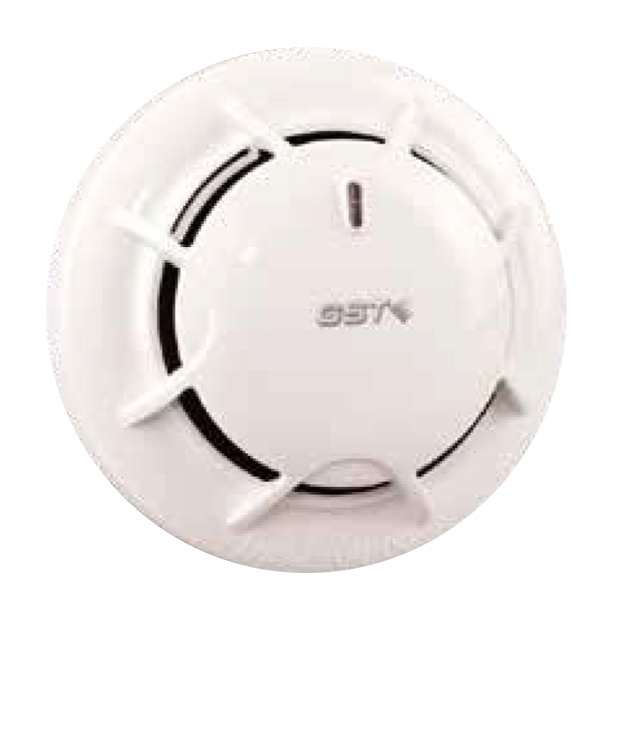

DC-9102E Conventional Photoelectric Smoke Detector


 Feature

    ☆ LED for 360° vision
    ☆ Featuring magnetic test
    ☆ Remote indicator output available
    ☆ Removable innovative sensing chamber
    ☆ 2-level sensitivities
    ☆ Magnetic Test
    ☆ LPCB Approved


Technical Specifications

    ☆ Standard: EN54-7
    ☆ Operating Voltage: 24VDC
    ☆Operating Current:
           Standby Current≤ 0.06mA
           Alarm Current≤ 55mA
    ☆ Operating Environment:
           Temperature: -10℃ ~+50℃
           Relative Humidity: 95%, non condensing
    ☆ Dimensions: Diameter 100mm; Height 54.5mm
