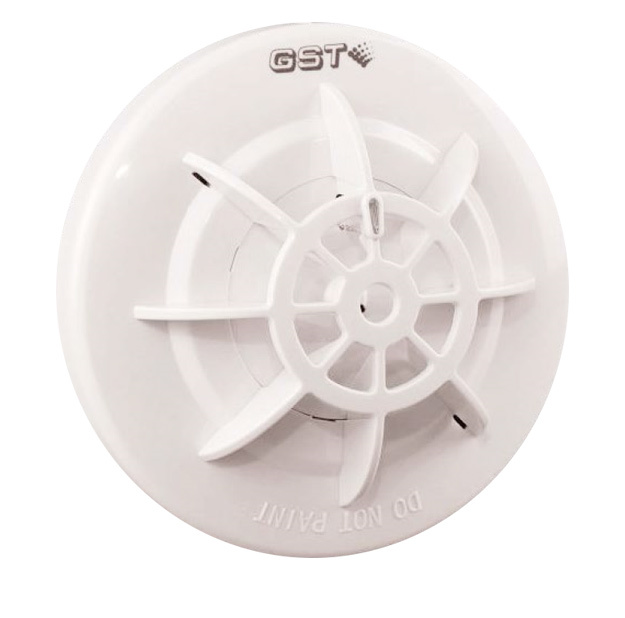

DC-9103E Conventional Rate of Rise and Fixed Temperature Heat Detector


 Feature

    ☆ LED for 360° vision
    ☆ Featuring magnetic test
    ☆ Remote indicator output available
    ☆ Reed switch testing
    ☆ 3 classes programmable
    ☆ LPCB Approved


Technical Specifications

    ☆ Standard: EN54-5
    ☆ Operating Voltage: 24VDC
    ☆ Operating Current:
           Standby Current≤ 60μA
           Alarm Current≤ 55mA
    ☆ Operating Environment:
           Temperature: -10℃ ~+50℃
           Relative Humidity: 95%, non-condensing
    ☆ Detector Class: A1R, A2S, BS
    ☆ Dimensions: Diameter 100mm, Height 53.3mm
