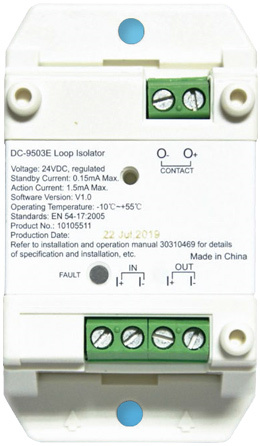

DC-9503E Loop Isolator


Feature

    ☆lsolation of short circuit, automatic restore when short circuit
       is cleared
    ☆Support Class A or Class B wiring
    ☆Rail mount or surface mount


Technical Specifications

    ☆Operating Voltage: Loop:24VDC(16V-28V)Power Limited
    ☆Standby Current: ≤0.15mA
    ☆Action Current: ≤1.5mA
    ☆Capacity: Maximum 70 devices
    ☆Indicator: Yellow, flashes in standby state, steady in fault
    ☆Wiring: Two wire
    ☆Maximum Line Voltage(Vmx): 28V
    ☆Minimum Line Voltage (Vuin): 16V
    ☆Maximum Continuous Current(lcMax): 1A
    ☆Maximum Transient Output Current( lsMAX): 5A
    ☆Maximum Voltage Open(VsoMAx): 11V
    ☆Minimum Open Voltage(Vsomin): 8V
    ☆Maximum Close Voltage(VscmAx): 4V
    ☆Minimum Close Current(VscMiN): 1.4V
    ☆Maximum Leakage Current(lLmAx): 7.5mA
    ☆Max closed impedance(Zcmax): 0.15Ω
    ☆Operating Temperature: -10°C-+55°C
    ☆Relative Humidity: ≤95%,non-condensing
    ☆Ingress Protection Rating: IP30
    ☆Material and Color of Enclosure: ABS, white (RAL9016)
    ☆Compatible DIN-Rail: 35mm DlN-Rails
    ☆Dimension(LxWxH): 78mmx45.3mmx28.5mm
    ☆Weight: About 41.4g



Download:DC-9503E_DS10105102 Datasheet
