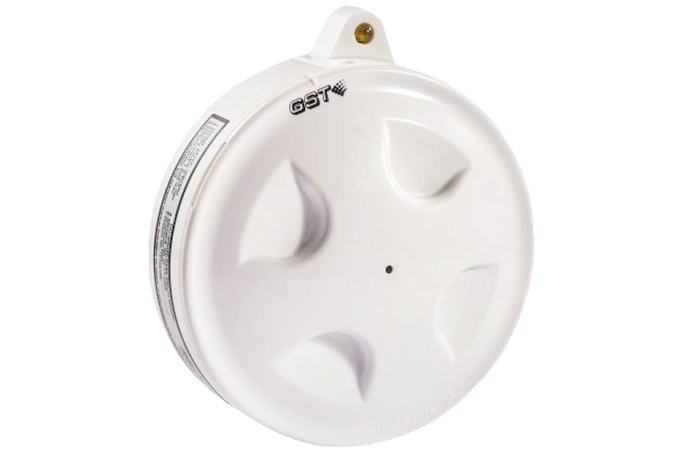

DC-9504E Base Mount Isolator


Feature

    ☆Polarity-sensitive external connections. Input and output can be
        used inversely without direction
    ☆Delayed power-up to output end devices, avoids strong transient
        current when the load is heavy


Technical Specifications

    ☆ Maximum Operating Voltage (VmAx): 28VDC
    ☆ Operating Voltage(VNom): 24V
    ☆ Minimum Operating Voltage (Vmin): 16V
    ☆ Maximum Open Voltage (VsoMAx): 11V
    ☆ Minimum Open Voltage(VsoMIN): 8V
    ☆ Maximum Close Voltage(VscMAx): 4V
    ☆ Minimum Close Voltage (VscmIN): 1.4V
    ☆ Maximum Continuous Current(lcmax): A
    ☆ Maximum Transient Output Current(lsmax): 5A
    ☆ Maximum Leakage Current(lLmAx): 7.5mA
    ☆ Max closed impedance(ZcmAx): 0.15Ω
    ☆ Standby Current: ≤0.1mA
    ☆ Action LED: Yellow. lt flashes in standby state, and lights
        in action
    ☆ Capacity: Maximum 70 devices
    ☆ Ambient Temperature: -10℃~+55℃
    ☆ Ingress Protection Rating:
             IP33 with cover
             IP22 without cover
    ☆ Relative Humidity: ≤95%,non condensing
    ☆ Material of Enclosure: ABS
    ☆ Dimension: ф100mmx39mm
    ☆ Mounting Hole Spacing: 45mm~75mm
    ☆ Weight: About 100g



Download:DC-9504E_DS10105103 Datasheet
