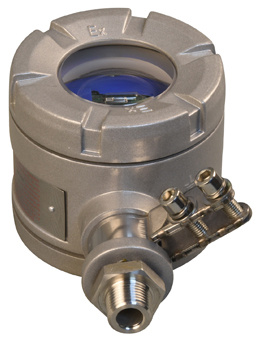

DI-9104Exd Digital Flame Proof UV Flame Detector


    ☆Built-in MCU processes signals and controls communication digitally.
    ☆Intelligent algorithm ensures quick response to reduced false alarms
    ☆Possible works in conventional mode, provides N/O contact output for easy interfacing
    ☆High sensitivity, reliable performance, and dust-proof, damp-proof and corrosion-proof abilities
    ☆3 classifications available
    ☆ATEX certified

Technical Specifications

    ☆Operating Voltage: Loop or 24VDC
    ☆Operating Current:
           Addressable mode:Standby Current≤2mA
                                         Alarm Current≤ 3mA
           Conventional mode:Standby Current≤ 13mA
                                         Alarm Current≤ 23mA
    ☆ Operating Environment:
           Temperature: -20℃ ~+60℃
           Relative Humidity: 95%, non-condensing
    ☆ Dimension: 147mm x 106mm x 92mm
    ☆ Explosion-proof Mark: Ex dⅡCT6Gb
    ☆ ATEX Certificate NO.: Presafe 14 ATEX 5547


Download:DI-9104Exd_DS10103097 Datasheet
