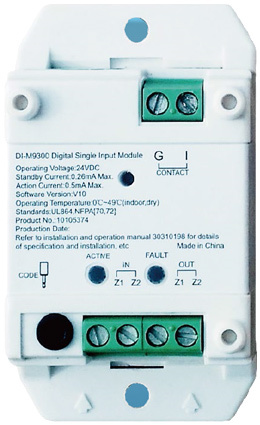

DI-9300E Digital Single Input Module


Feature

    ☆Input port monitored with 4.7KΩ EOLR
    ☆Normally open or normally closed contact acceptable
    ☆Electronically addressed. Address can be modified in field
    ☆Built-in microprocessor and AD sampling technology
    ☆Rail mount or surface mount


Technical Specifications

    ☆Operating Voltage: Loop 24VDC (16VDC-28VDC) Power
        Limited
    ☆Standby Current: ≤0.26mA
    ☆Action Current: ≤0.5mA
    ☆Programming: Electronically addressing
    ☆Address Range: 1 address,from 1 to 242
    ☆ Indicator:
          Feedback LED: Red, lights on activation,fashes in other states
          Fault LED: Yellow, lights 0.5s on and 0.5s off as there is input
         fault, turns off in other states
    ☆ Ingress Protection Rating: IP30
    ☆ Operating Temperature: -10°C~+55°C
    ☆ Relative Humidity: ≤95%,Non Condensing
    ☆ Material and Color of Enclosure: ABS, white(RAL9016)
    ☆ Dimension(LxWxH): 78mmx45.3mmx28.5mm
    ☆ Weight: About 36.8g



Download:DI-9300E_DS10105506 Datasheet
