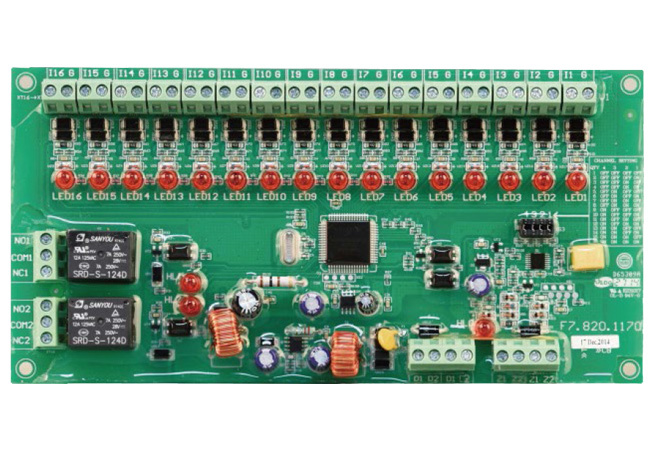

DI-9309 Addressable Multi-Channel Interface


Feature

    ☆ Max. 16 channels of independent inputs. The quantity can be
        set as required
    ☆ Input signals are insulated from the loop
    ☆ Two channels of independent dry contact output
    ☆ 3-18 consecutive addresses, changing with selected channel
        quantity
    ☆ Power supply monitored
    ☆ Cable monitored for open circuit and short circuit


Technical Specifications

    ☆ Operating Voltage:
            Loop:24V(16V~28V)
            Power Supply:24VDC (20V~28V)
    ☆ Standby Current: Loop ≤1.5mA Power ≤50mA
    ☆ Action Current: Loop ≤3mA Power ≤100mA
    ☆ Output Capacity: Output contact capacity: 220V/2A
    ☆ Programming Method: Electronically programming
    ☆ Code Range: Occupying 3-18 addresses, the output address of
        Channel 1 can be set within 1~225
    ☆ Action Indicators:
        Red
        Separate polling indicator HL0
        Individual state LED (n)for each input channel. Flashes in
        fault state. llluminates inaction state. Quiet in normal
        supervisory
        HL1 and HL2 for each channel output.llluminates when
        activated
    ☆ Ambient Temperature: -10°C~+50°C
    ☆ Relative Humidity: ≤95%,non condensing
    ☆ Mounting Hole Distance: 190mmx90mm
    ☆ Dimensions(LxWxH): 200mmx100mmx20mm
    ☆ Weight: About 240g



Download:DI-9309_DS20101089 Datasheet
