Feature

    ☆ Up to 100 LED indication points
    ☆ Local buzzer alarm and mute

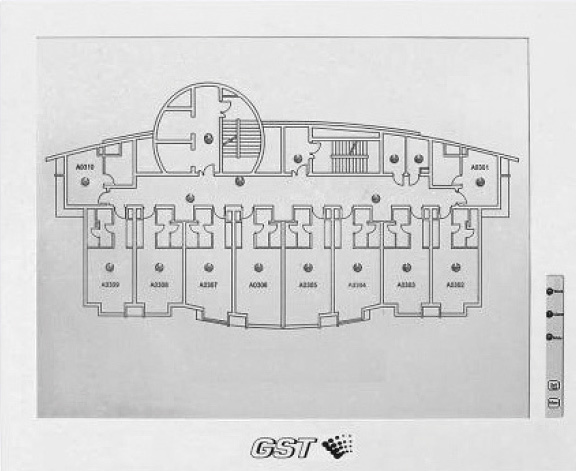

    ☆ Customized Graphical layout to project requirement
    ☆ Programmable to display zones or individual device
    ☆ Programmable to indicate Fire, Action and Fault conditions
    ☆ A3, A2 and A1 sizes

Technical Specifications

    ☆ Working voltage: 24VDC
    ☆ Operation current:
             Standby 25mA
             Alarm 100mA
    ☆ LED Capacity: Maximum 100 LED
    ☆ Wiring:
             2-core for RS485 signals
             2-core for 24VDC power
    ☆ IP rating: IP30
    ☆ Operating Environment:
             0C~+40°C
             ≦95%,non condensing
