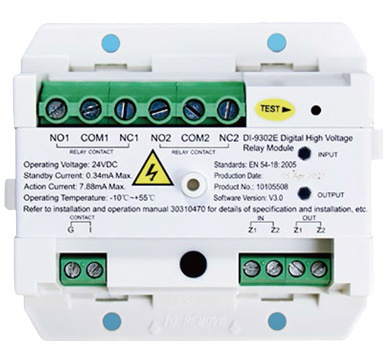

DI-9302E Digital High Voltage Relay Module


Feature

    ☆Built-in microprocessor and AD sampling technology
    ☆Electronically addressed
    ☆Optional to program as “Invert Mode”, need compatible panel
        (GST-IFP4E) support
    ☆Two groups normally open or normally close dry contact ouput
    ☆Input port monitored with 4.7KΩ EOLR
    ☆With a protective cover to prevent electric shock from touching
        the terminal
    ☆With a TEST button to manually active module output
    ☆Rail mount or surface mount


Technical Specifications

    ☆Operating Voltage: Loop 24V(16V~28V)
    ☆Standby Current: ≤0.34mA
    ☆Action Current: Loop ≤ 7.88mA
    ☆Output Capacity: Capacity is 220VAC 15A
    ☆Output Control way:
       Relay normally open/normally
       closed contact input
    ☆Programming: Electronically addressing
    ☆Address Range:
       Option 1: Both Input and Output occupy one address that
       ranges from 1 to 242
       Option 2: Occupy two addresses representing Input and Output.
       Input address range is 1 to 241. Output address is automatically
       programmed as input address plus 1
    ☆LEO:
       Input LED: Red.it lights in receiving feedbacks, lights 0.5s on,
       0.5s off in input faults,flashes twice in power fault and flashes
       in other states
       Output LED: Red. lt lights in relay action. lt turns off in other
       states
    ☆Ingress Protection Rating: IP30
    ☆Operating Temperature: -10°C ~ +55°C
    ☆Relative Humidity: ≤95%, Non Condensing
    ☆Materials of the Enclosure: ABS, white(RAL9016)
    ☆Dimension (LxWxH): 92.8mmx79.2mmx46mm
    ☆Weight: About 120g



Download:DI-9302E_DS10105508 Datasheet
