Description

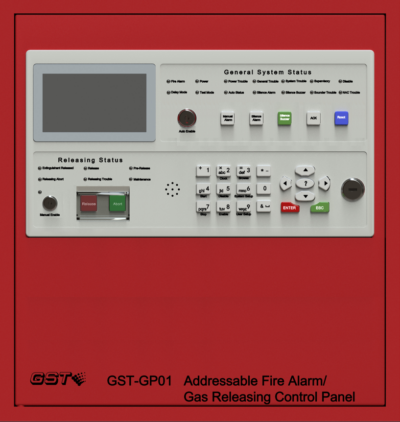

GST-GP01 is a typical gas extinguishing control device. It can be connected to detectors, manual release stations, release abort stations, audible and visual alarms, gas extinguishing indicators, as well as I/O modules, etc. It has both fire detection and gas extinguishing control functions, and can achieve multiple fire protection zones control.
• 4.3-inch color TFT LCD, 480 x 272 resolution
• 2 loops that meet Class A and Class X
• 242 addressable devices per loop mixing various types of devices
• Two Class B NAC which can also be set to AUX
• Built-in four programmable relays which can be set as Alarm, Supervisory, Trouble, Disable function. Additional one fixed trouble relay
• Walk test, silent or audible
• Automatic ground fault detection
• Password stored in nonvolatile memory
• User programmable password
• Field-programmable via panel keypad or mobile APP through Bluetooth connection
• Up to 9,999 history logs, including 1,000 fire alarms and 1,000 operation records,with full search and retrieval
