Description

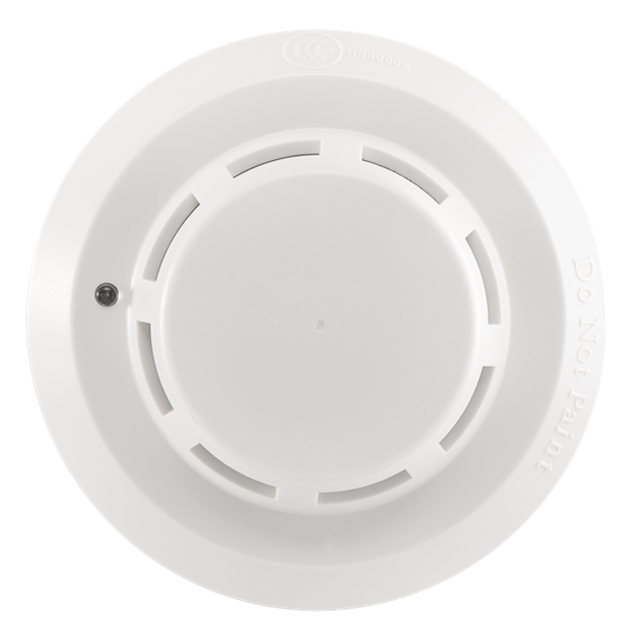

JTY-GF-G3C Conventional Photoelectric Smoke Detector is a non-addressable detector, applicable to hotels, restaurants, office buildings, teaching buildings, banks, warehouses, libraries, computer rooms, switch rooms, vessels and etc. It can be connected with fire alarm control panel (FACP) through Addressable Zone Monitor. When the detector checks fire signal, it will send fire information to the control panel or addressable zone monitor unit by means of current changing. The detector keeps turning on the LED to indicate alarm state until it is reset.
The chamber of the detector is developed by dual-band scattering theory. It has the ability to resist dust contamination and environmental light.
• Integrated algorithm of analyzing fire, recognize black smoke quickly.
• Drift sensitivity, suit to environment extensively.
• Removable innovative sensing chamber, easy for maintenance.
• Providing remote terminals connect with remote indicator.
• 3-level sensitivities
