Description

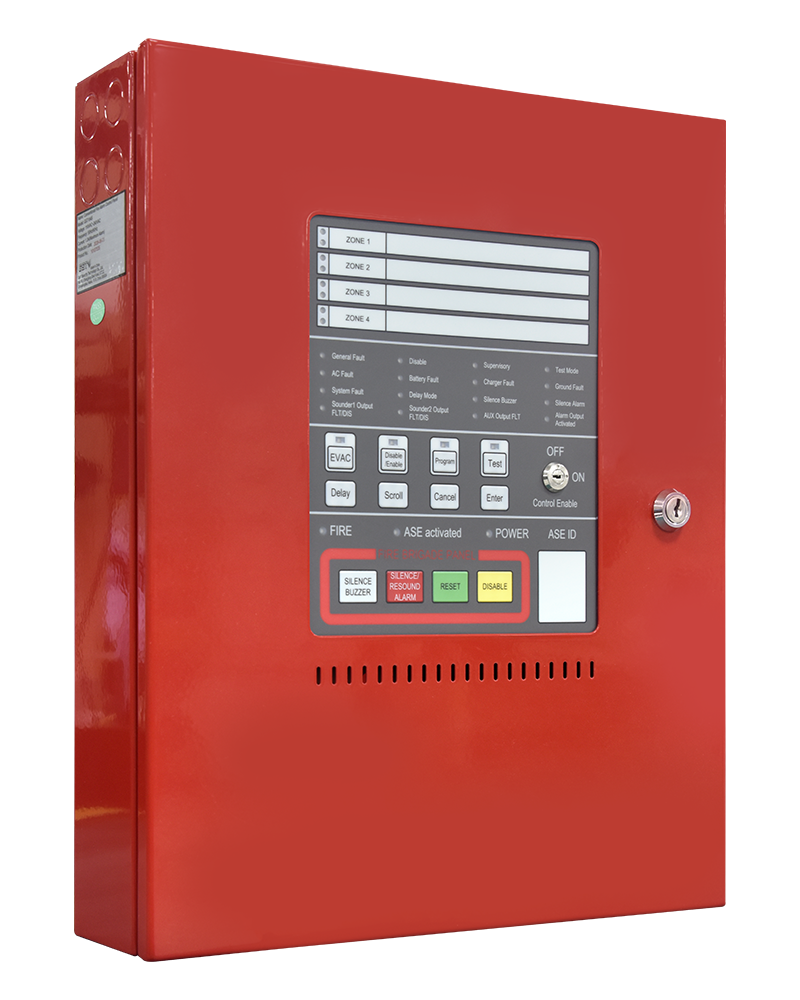

GST104S Conventional Fire Alarm Control Panel is designed according to EN54 standards. It’s compatible with GST conventional detectors,manual call points and sounders. The panel is easy to install and operate. Control functions are enabled by a key switch. Programming functions are enabled by a key switch and an internal switch.
• Supports up to 4 detection zones, with conventional detectors and manual call points; the maximum number of external conventional points per zone is 32.
• Two sounder outputs, one alarm output and one fault output.
• Able to report short and open circuits of zones and sounder outputs.
• Test and disable functions.
• CE approved AC-DC module.
• Better surge & ESD protection for MCU.
• Programmable on manual call point connection, sound modes, sounder delay modes and output delay modes via the USB.
• Three access levels settable via the key switch and the internal switch.
• Designed with standby batteries and space provision for two sealed lead-acid batteries.
• Ground fault detection.
• NC/NO contact output for Alarm/Fault, contact capacity: 1A/24VDC.
• 2 sounder output, 300mA in alarm.
• 1 Auxiliary Power Output, Max.1A.
• Option function: The repeater board supports remote control such as reset, EVAC, silence. Fire alarms and faults can be reported in different zones.
