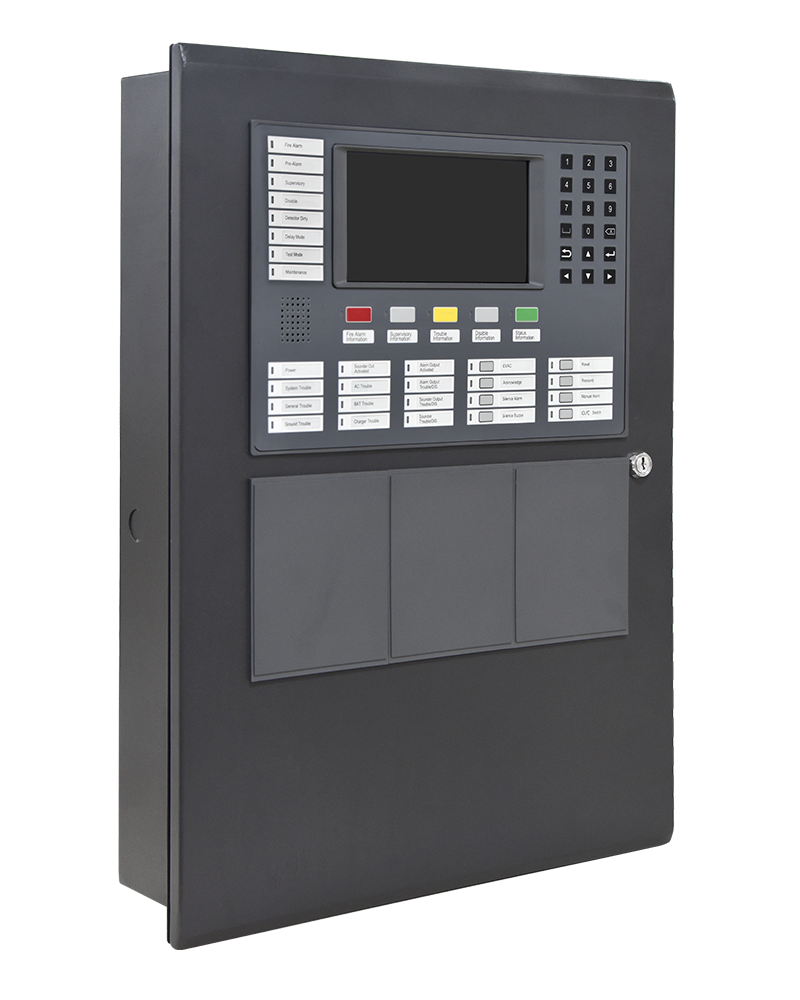

GST-IFP2E Intelligent Fire Alarm Control Panel

Category: Addressable System

Description

GST-IFP2E is an intelligent fire alarm control panel,which designed to fit small size projects, supporting maximum 2 loops or 484 devices. featured by powerful CPU and touchscreen, embedded Linux OS and a user-friendly interface. They are designed for making installation, operation and maintenance much easier than ever.

• 7-inch Touch Screen, 800 x 480 resolution.
• Support 1-2 loops in Class A style (additional battery box is required if 6 loops fully loaded).
• 242 addressable devices per loop mixing various types of devices, Max. 484 addresses.
• Max 3 ZCP panels ,each panel with individual programmable buttons & LED indicators.
• Max. 40 virtual zones.
• Multi-language support.
• Graphic Cause and Effect programing AND, OR, NAND,NOR logic, support virtual variable.
• Auto learn panel hardware configuration and loop devices, device type mismatch notice.
• Detector chamber dirty level reporting, adjust dirty level threshold.
• History: 10,000 alarm events, 10,000 supervisory events and 100,000-other events capacity.
• “Walk test”, silent or audible.
• Type A Type B Positive Alarm Sequence.
• E-mail notification.
• USB port for loading project database and firmware update.
• Programing via PC or panel keypad and touch screen.
• Support USB dongle for securing project database.
